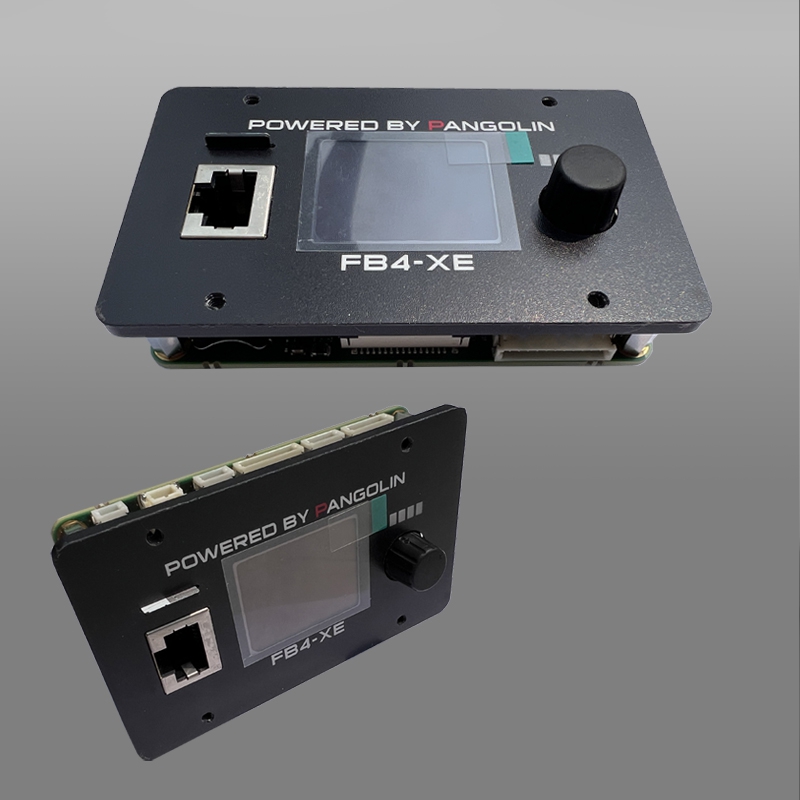

Operation modes
Beyond/QS
In Beyond/QS mode, FB4 connects to Pangolin Quickshow or Beyond software via an ethernet network.
Geometric correction is being handled by the control software and native geometric correction on FB4 is turned off to avoid conflicts.
ILDA Input
In ILDA input mode, the signals from the ILDA input connector on the FB4-ILDA daughterboard are transmitted to the color and axis output connectors on FB4. In this mode, native geometric correction on FB4 is turned off.
This operation mode is not available when there is no FB4-ILDA daughterboard connected.
DMX-512
In DMX-512 mode, FB4 is being controlled through the DMX input port on the FB4-DMX daughterboard. The content is stored on the SD card and FB4 can apply multiple effects to them.
In this mode, geometric correction can be applied natively on FB4.
This operation mode is not available when there is no FB4-DMX daughterboard connected.
ArtNET
In ArtNET mode, FB4 is being controlled with an ArtNET signal via the ethernet port on FB4. The content is stored on the SD card and FB4 can apply multiple effects to them.
In this mode, geometric correction can be applied natively on FB4.
Autoplay
In autoplay mode, FB4 can be configured to play laser content from the SD card without any external input. FB4 can be programmed to play single cues or entire playlists of cues immediately after power-up or at specific times.
In this mode, geometric correction can be applied natively on FB4.
Time Code
In time code mode, FB4 plays content from the SD card in sync with an external timecode source. FB4 can receive ArtNET timecode via the ethernet connector.
In this mode, geometric correction can be applied natively on FB4.
Slave Mode
In slave mode, FB4 plays content from the SD card in sync with a “Master” FB4 which is working in autoplay mode. The ethernet network is being used to synchronize the FB4s.
In this mode, geometric correction can be applied natively on FB4.
Test mode
Test mode can be used to play test patterns from the SD card for the purpose of testing your laser or adjusting FB4’s internal parameters or geometric correction.
